This page is part of the Magentus Practice Management FHIR Implementation Guide (v1.3.2: Releases Draft) based on FHIR (HL7® FHIR® Standard) R4. No current official version has been published yet. For a full list of available versions, see the Directory of published versions

Requesting

The Magentus Requesting Service supports pathology and radiology diagnostic requesting with an intent to eventually support the round tripping of requests and reports. The profiles in this section attempt to leverage common foundations for both flavours of requests while allowing for relevant domain specific specialisations.

Some features to note:

• Requesting depends on a ServiceRequest/Task pattern that is defined as Option F in the FHIR Workflow description. This uses a Task to track the fulfillment of a ServiceRequest, primarily through the status and businessStatus attributes.
• In addition to a Task for each ServiceRequest, we also allocate a Group Task that provides a resource coordinating a set of individual Tasks for each ServiceRequest (each individual test or service where multiple may constitute a single order). In addition to the explicit Group Task, they are also implicitly bound together through their common groupIdentifier attribute. The reason for an explicit Group Task resource is to aid searching and discovery of complete orders rather than needing to discover each part of the order in isolation.
• Tasks are also used to track the workflow associated with CommunicationRequests. These are used to track fulfilment of communication with a patient about their diagnostic service or with a clinician for urgent results. In future, this will also be used to carry the existing copyTo information for copying results to other clinicians.

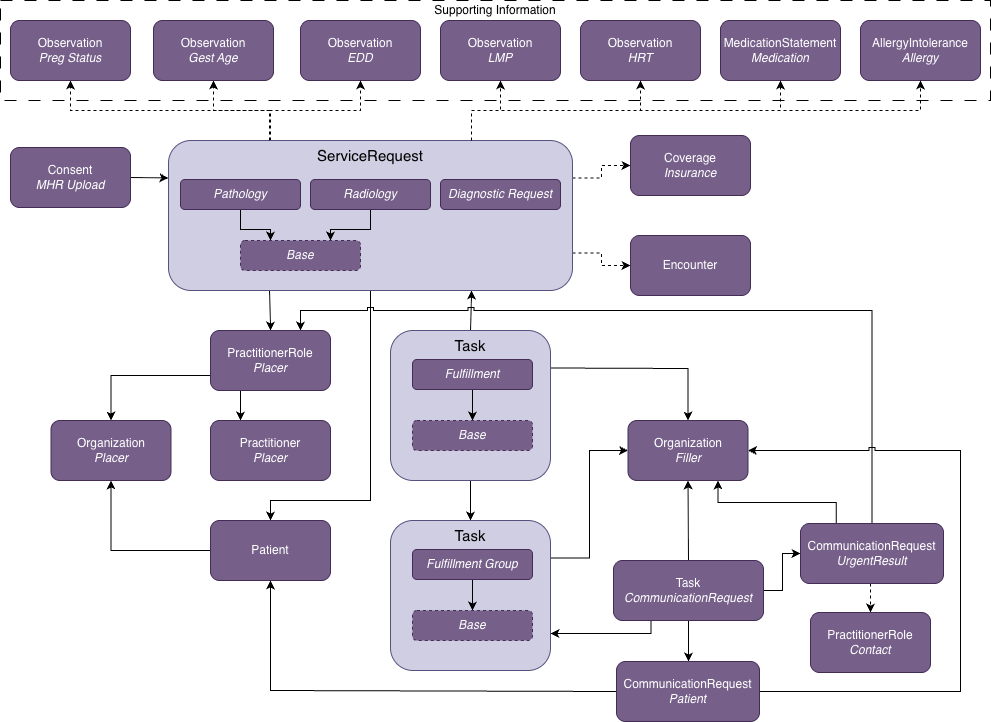

The FHIR Resources used by the Magentus Requesting Service are shown in the diagram below.

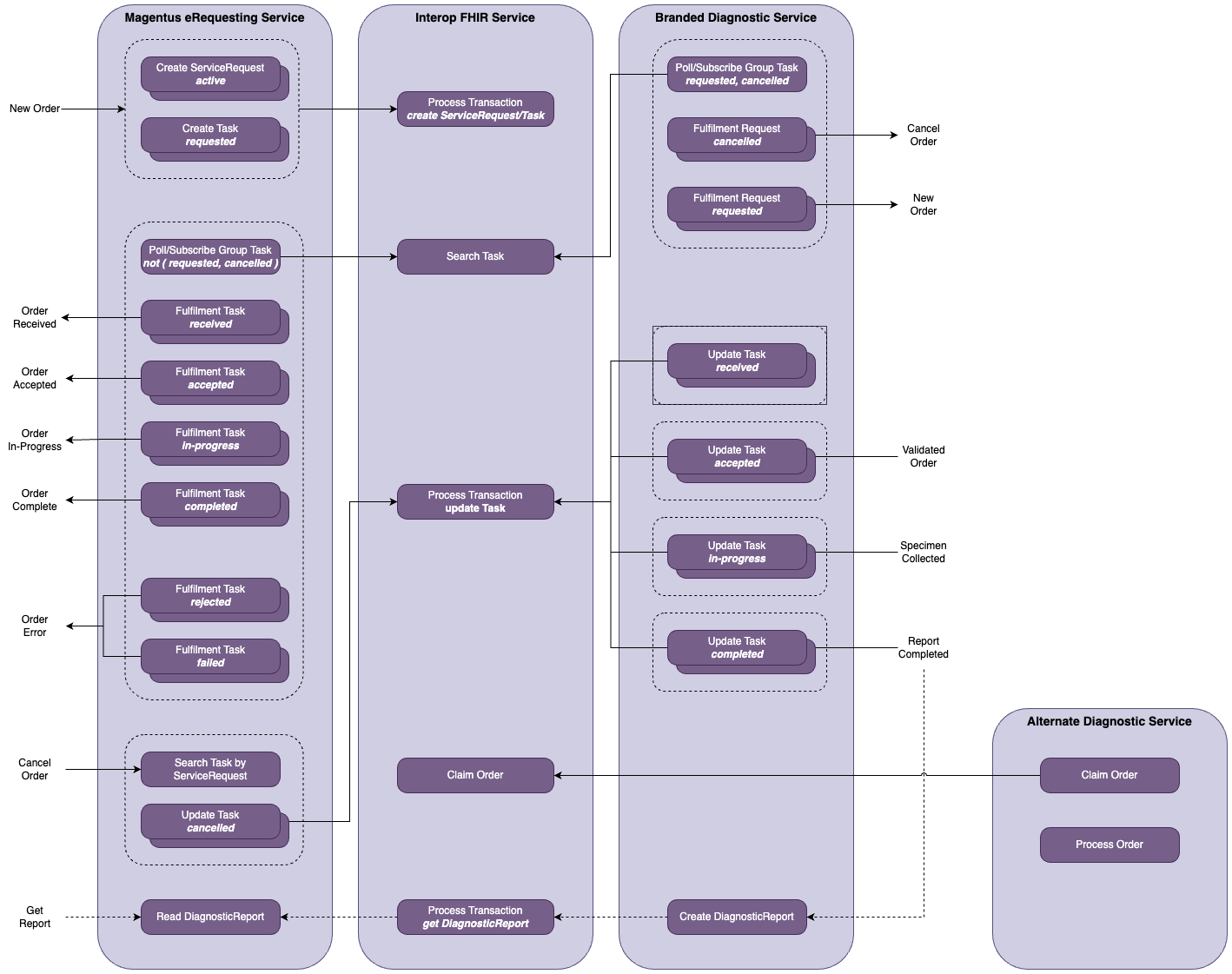

Typical sequence of interactions involving Placers and Fillers.

Requesting Service

Requesting Profiles

The FHIR Resources generated by the Magentus Requesting Service are listed below.

ServiceRequest and Task

New integrations should use Pathology Request or Radiology Request. The legacy Diagnostic Service Request is retained for backwards compatibility only.

Legacy profile

CommunicationRequest and Task

Organizations

Fulfilment Tasks are linked to an owner organization to indicate a preferred or assigned filler. From a placer's perspective these are diagnostic service brands. From a filler's perspective, brands belong to an organizational entity. We represent these using a child brand Organization linked to a parent Organization. This is important for fillers discovering new requests: one Organization search on the parent returns every brand, so a filler can resolve the resource id of each of its brands at start-up. Task subscriptions and searches then filter on those ids. See Discovering Filler Organizations.

Other Profiles

Supporting Clinical Information

ServiceRequests can include a set of supporting information that provides relevant clinical background for the patient. They are linked from ServiceRequest.supportingInfo which is a list of resource references. All supporting information resources should include a narrative representation, e.g. Observation.text, so that the resource can be processed into text-based clinical notes if the structured information in the resource cannot be processed. Since a diagnostic order can include multiple requests, common supportingInfo should be referenced from each ServiceRequest. This means that referenced resource should be a full resource in the order transaction and not contained within the ServiceRequest.

Contained

Additional resources are contained within the Requesting resources above, the FHIR profiles for these resources are listed below.

Workflow

The eRequesting workflow describes the interactions between a placer and a filler (or alternate filler) via the eRequesting FHIR Service.

Test/Service Data Consistency

While our use of individual ServiceRequests and Tasks could allow for unique attributes such as Status, Note, etc., we currently require that all child ServiceRequest and Task share common values, including that within the Group Task.

Placer Family Tag

All ServiceRequest and Task resources carry an optional meta.tag slice called placer-family that identifies the placer system that generated the order (e.g. genie, gentu, acmepms). The tag is bound to the EOrdersPlacerTagValueSet and uses the code system http://fhir.geniesolutions.io/CodeSystem/eorders-placer-tag-codesystem.

The EOrdersSubmitOrderBundle profile enforces a consistent-placer-tag invariant that requires all Task and ServiceRequest entries within a submit-order transaction Bundle to carry the same placer-family tag value. This ensures that the placer identity is consistent across the entire order.

Placer Integration

Placer Integration Overview

A placer system interacts with the Requesting Service through a series of operations that follow a natural workflow:

1. Discover Brands — Use the Get Brands Operation to discover available diagnostic service brand organizations (pathology laboratories and imaging services).
2. Register Subscriptions — Use the Add Placer Subscription Operation to register a Subscription across one or more brand partitions so that the placer receives notifications when order statuses change. See Placer Subscription Criteria for the criteria, and Subscribing to Requests for handling notifications.
3. Submit Orders — Use the Submit Order Operation to submit a diagnostic order as a transaction Bundle conforming to the EOrdersSubmitOrderBundle profile.
4. Monitor Fulfillment — Respond to subscription notifications by retrieving updated Tasks. See Retrieving Subscription POST Notification Data for search patterns including _include and _revinclude parameters.

Get Brands Operation

The Get Brands operation allows a placer to discover available diagnostic service brand Organizations (Pathology Laboratories and Imaging Services). This is typically the first step in the placer workflow — the placer retrieves the list of brands to present to the requesting clinician.

See Get Brands Operation Definition for the full specification.

Parameters

Example — Retrieve all pathology brands

POST [base]/Organization/$get_brands

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "serviceType",
      "valueCode": "pathology"
    }
  ]
}

Example — Retrieve all brands (no filter)

POST [base]/Organization/$get_brands

{
  "resourceType": "Parameters",
  "parameter": []
}

Submit Order Operation

The Submit Order operation is used to submit a diagnostic order (pathology or radiology) as a transaction Bundle. The Bundle must conform to the EOrdersSubmitOrderBundle profile.

The HTTP response body is always a single resource. Check resourceType to determine the outcome:

See Submit Order Operation Definition for the full specification.

Undirected Order Lifecycle

When no fulfillment Task carries a Task.owner, the order is undirected — it has been lodged in the registry but not assigned to a specific filler. The $submit_order operation returns an informational OperationOutcome to confirm this.

The lifecycle of an undirected order after submission:

1. Lodged — the order Bundle is stored and the fulfillment Task(s) sit in requested status with no owner.
2. Patient presents — the patient takes the request form (which carries the requisition barcode) to a filler of their choice.
3. Claim — the filler calls the $claim operation with the requisition identifier (barcode) and their organisation reference. This assigns Task.owner to the claiming filler and returns a new group Task.
4. Fulfilment — once claimed, the workflow proceeds identically to a directed order.

Note that fillers cannot search for or subscribe to undirected orders — filler discovery is based solely on Task.owner. An undirected order becomes visible to a filler only after they claim it using a requisition identifier provided by the patient.

The placer discovers that an undirected order has been claimed by subscribing to status changes on the group Task (e.g. Task?status=received,accepted) — the same subscription pattern used for directed orders. No special handling is required on the placer side.

Order Bundle Profile

The EOrdersSubmitOrderBundle is a transaction Bundle that must contain the following entries at minimum:

All entries must include fullUrl and request.method = PUT.

All ServiceRequest and Task entries should carry a placer-family meta tag identifying the placer system. The Bundle enforces a consistent-placer-tag invariant requiring all Task and ServiceRequest entries to use the same tag value — see Placer Family Tag for details.

Example — Submit an order

POST [base]/$submit_order

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "order",
      "resource": {
        "resourceType": "Bundle",
        "meta": {
          "profile": [
            "http://fhir.geniesolutions.io/StructureDefinition/eorders-submit-order-bundle"
          ]
        },
        "type": "transaction",
        "timestamp": "2024-01-15T10:30:00+11:00",
        "entry": [
          ...
        ]
      }
    }
  ]
}

Bundle Examples

The following example Bundles conform to the EOrdersSubmitOrderBundle profile and can be used as reference when constructing orders:

Response Examples

The following examples illustrate each possible response from the operation:

Add Placer Subscription Operation

The Add Placer Subscription operation registers a Subscription resource across one or more SmileCDR partitions mapped from brand Organization references. This allows a placer system to register for notifications across multiple diagnostic service brands in a single call rather than manually creating subscriptions in each brand's partition.

Each Organization reference (literal or logical) is resolved to the corresponding SmileCDR partition. The provided Subscription is then submitted to each partition. The operation returns a result per organization indicating success or failure.

See Add Placer Subscription Operation Definition for the full specification.

Placer Subscription Criteria

A placer tracks an order as the filler advances it. Filter on the statuses the filler sets — received, accepted, in-progress, completed, failed and rejected — and on the group task tag:

Task?status=received,accepted,in-progress,completed,failed,rejected
  &_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group

Subscription.criteria holds this as one string. The line break above is for readability only.

Two points to note.

• Do not filter on requested or cancelled. The placer sets those itself, so a notification on them tells the placer only what it already did. requested and cancelled are the filler's discovery statuses, covered in Subscribing to Requests.
• The criteria carry no Organization filter. The organization parameters of this operation do that work: each one maps to a brand partition, and the Subscription is registered in each. Every Task in a partition already belongs to that brand. Discover those brand ids with $get_brands and pass them as pre-discovered resource ids. A chained parameter such as owner.partof.identifier= cannot be used in criteria at all — see Discovering Filler Organizations.

Parameters

Result Codes

Example — Register a subscription across two pathology brands

POST [base]/Subscription/$add_placer_subscription

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "subscription",
      "resource": {
        "resourceType": "Subscription",
        "criteria": "Task?status=received,accepted,in-progress,completed,failed,rejected&_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group",
        "status": "requested",
        "reason": "Order fulfilment status subscription",
        "channel": {
          "type": "rest-hook",
          "endpoint": "https://webhook.site/bbd78ee4-e267-4633-8acc-38a5e1dc54a0",
          "header": ["Authorization: Bearer <access-token>"]
        }
      }
    },
    {
      "name": "organization",
      "valueReference": {
        "reference": "Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf",
        "display": "Magentus Pathology Lab Brand A"
      }
    },
    {
      "name": "organization",
      "valueReference": {
        "reference": "Organization/another-lab-brand-id",
        "display": "Magentus Pathology Lab Brand B"
      }
    }
  ]
}

Example Response

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "result",
      "part": [
        {
          "name": "organization",
          "valueReference": {
            "reference": "Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf"
          }
        },
        {
          "name": "outcome",
          "valueCoding": {
            "system": "http://fhir.geniesolutions.io/CodeSystem/eorder-add-placer-subscription-result-codesystem",
            "code": "ok",
            "display": "OK"
          }
        },
        {
          "name": "subscription",
          "valueReference": {
            "reference": "Subscription/sub-12345"
          }
        }
      ]
    },
    {
      "name": "result",
      "part": [
        {
          "name": "organization",
          "valueReference": {
            "reference": "Organization/another-lab-brand-id"
          }
        },
        {
          "name": "outcome",
          "valueCoding": {
            "system": "http://fhir.geniesolutions.io/CodeSystem/eorder-add-placer-subscription-result-codesystem",
            "code": "ok",
            "display": "OK"
          }
        },
        {
          "name": "subscription",
          "valueReference": {
            "reference": "Subscription/sub-12346"
          }
        }
      ]
    }
  ]
}

Tip: The channel properties used in this operation are the same as those described in Subscribing to Requests. The criteria differ, because a placer watches the statuses a filler sets rather than the statuses a filler discovers — see Placer Subscription Criteria. This operation also distributes the Subscription across brand partitions automatically.

Filler Integration

Filler Integration Overview

A filler system discovers and fulfils orders in four steps:

1. Resolve Organization ids — Search Organization once at start-up and cache the resource id of every brand the filler fulfils for. See Discovering Filler Organizations.
2. Register a Subscription — Register a Subscription whose criteria filter group Tasks by those cached ids. See Subscribing to Requests.
3. Retrieve on notification — Respond to the notification, then search for the group Tasks that await action. See Retrieving Subscription POST Notification Data.
4. Update on fulfilment — Advance status and businessStatus as the service proceeds. See Updating Tasks based on Fulfilment.

Discovering Filler Organizations

Filter Task by the owner resource id. Do not filter by a chained Organization identifier.

Subscription.criteria cannot carry a chained parameter at all. The criteria are matched in memory against each resource as it is written, and chained parameters are not supported there. A criteria such as owner.partof.identifier= therefore never matches. This is why the filler must resolve the Organization resource id before it registers a Subscription.

A search does support the chain, but at a cost. owner.identifier= or owner.partof.identifier= makes the server resolve an Organization for every candidate Task across the whole result set, and the cost grows with order volume.

Brand Organization resource ids are stable. Resolve them once and use the same owner=Organization/<id> form in the criteria and in the search.

Resolve every brand under a parent

GET [base]/Organization?partof.identifier=http://ns.electronichealth.net.au/id/hi/hpio/1.0|8003123456789123

Resolve a single brand

GET [base]/Organization?identifier=http://ns.electronichealth.net.au/id/hi/hpio/1.0|8003123456789124

Cache Organization.id from each entry of the returned Bundle. A filler that does not keep its own registry can call $get_brands instead, which returns the same brand Organization resources.

The eOrders CapabilityStatement declares these searches. The identifier search is SHALL. The partof search is SHOULD, so a server may not support the partof.identifier= chain. Where it does not, resolve the brands with $get_brands, which is SHALL.

Repeat the search when the filler adds a brand. A new brand id must be added to the subscription criteria, so update the existing Subscription or register a further one.

Subscribing to Requests

In order to receive subscription notifications from the FHIR Server when resources of interest are created or updated, a subscription is registered. A subscription request includes the following properties.

In this case we are interested in Task resources that are

• in a requested or cancelled status,
• are associated with a Task group, not an individual Task fulfillment, and
• are owned by a brand Organization of the filler, addressed by resource id.

Give the _tag value as a full system|code token. A group Task carries two group tags — fulfillment-task-group from the eOrders tag code system, and fulfilment-task-group from the AU Base resource-tag code system for AU eRequesting alignment. The two spellings differ by one letter, so a bare code is easy to get wrong.

Where a filler fulfils for several brands, list the ids in one criteria separated by commas — owner=Organization/<id-1>,Organization/<id-2> — or register one Subscription per brand. There is no chained alternative. The criteria cannot reach the brands through their parent Organization, so every brand id has to appear in the criteria. See Discovering Filler Organizations.

The criteria decide when the filler is woken. The search that follows decides what the filler processes. A business-status filter can go in the criteria, in the search, or in both. businessStatus is an element of Task itself, so in-memory criteria matching supports it. The criteria above carry no such filter, which is the broad form. Whether claimed-request belongs in the criteria is a separate decision, covered in Claimed Orders and the Discovery Path.

Example The following example creates a new Subscription for the Task resource with criteria as described above.

POST [base]/Subscription

{
  "resourceType": "Subscription",
  "criteria": "Task?status=requested,cancelled&_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group&owner=Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf",
  "status": "requested",
  "reason": "Task requested and cancelled subscription",
  "channel": {
    "type": "rest-hook",
    "endpoint": "https://webhook.site/bbd78ee4-e267-4633-8acc-38a5e1dc54a0",
    "header": ["Authorization: Bearer secret-token-abc-123"]
  }
}

The Subscription endpoint can also be used to Search, Read, Update and Delete as per the standard FHIR REST API pattern.

Subscription POST Notification

A subscription notification is received as a POST request on the endpoint specified in the subscription registration request. The POST request has an empty body.

Example

POST https://webhook.site/bbd78ee4-e267-4633-8acc-38a5e1dc54a0
Authorization: Bearer <access-token>

Responding to a Subscription Notification

The subscription notification shall respond as quickly as possible with a success status of 200 OK or 202 Accepted, and an empty body. The latter is normally returned when the request is accepted for processing but processing will commence after the response has been returned, which is the preferred approach for subscription notifications.

Any error response may result in a subsequent retry by the FHIR Server to submit the Subscription Notification until the number of retries is exceeded, at which time the FHIR Server will stop the subscription. See Managing Subscriptions and Errors for more details.

Retrieving Subscription POST Notification Data

The notification says that something matched. It does not say what. When a notification is received, search for the group Tasks that await filler action. Filter by the cached owner ids and by a positive list of businessStatus values.

Example

GET [base]/Task?status=requested,cancelled & \
_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group & \
business-status=http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|directed-request, \
http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|user-cancelled-request, \
http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|claimed-cancel & \
owner=Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf & \
_sort=_lastUpdated & _count=500

The three business-status tokens are one comma-separated parameter value, which is an OR. The line breaks above are for readability only and carry no spaces in the real URL. Give each token as a full system|code pair.

Filter on a Positive List, Not a Negation

business-status:not= and chained parameters such as owner.identifier= both force the server to evaluate every candidate Task before it can discard one. A positive token list does not. It is an indexed match, and its cost does not grow with the number of orders the filler has already handled.

The three codes above are the states that await filler action. Each has a successor the filler sets itself. directed-request advances to booked, scheduled, collected or a rejection code. Both cancellation codes advance to cancel-handled. A Task therefore leaves the result set as soon as the filler updates it. The list bounds the query on its own.

_lastUpdated=gt<timestamp> stays available to narrow a large backlog, but it is no longer the primary filter and no watermark has to be kept for correctness. Sort on _lastUpdated and set _count.

Paging While Updating Tasks

Do not follow the next link after you update Tasks from the current page. Each update changes businessStatus, so the updated Tasks leave the filtered result set at once. Paging is offset-based, so the later matches move up, and the next page starts after some of them. Those Tasks are skipped.

Use one of these two patterns:

• Collect all pages first. Follow the Bundle.link entry with relation of next until the pages are exhausted, and queue every Task. Update the Tasks only after the last page.
• Process the first page until the search is empty. Process and update the Tasks on the first page, then run the same search again. Do not follow next. Stop when the search returns no entries.

What the Search Returns

Each row is a group Task. Retrieve the rest of the order with the _include and _revinclude parameters below, or by a separate search on the groupIdentifier.

Claimed Orders and the Discovery Path

A claimed order reaches the filler twice. $claim returns the new group Task in its groupTask output parameter. The same group Task is written with a status of requested and a businessStatus of claimed-request, and it also carries the claimed-request tag, so the ordinary discovery path can return it as well.

Fillers take one of two approaches. The choice depends on how fast the filler can process a discovered order. Decide once, then apply the same decision to the subscription criteria and to the search. If the two disagree, the filler is either woken for nothing or processes the order twice.

In the fragments below, <cs> stands for http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem.

Option A — Act on the Claim Response

The filler reads groupTask from the $claim response and retrieves the order at once. claimed-request stays out of both the criteria and the search.

Narrow the subscription criteria with the same three-code list the search uses:

Task?status=requested,cancelled
  &_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group
  &business-status=<cs>|directed-request,<cs>|user-cancelled-request,<cs>|claimed-cancel
  &owner=Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf

Subscription.criteria holds this as one string. The line breaks above are for readability only.

The search keeps the three-code list shown in Retrieving Subscription POST Notification Data. No change is needed there.

A filler that prefers to leave the criteria in the broad form can do so. The claimed group Task then still raises a notification, and the search that follows returns nothing new. That empty result is expected and needs no handling.

Option B — Let the Discovery Path Carry It

The filler ignores groupTask and waits for the order to arrive through the subscription and the search. Add claimed-request to the business-status list:

business-status=<cs>|directed-request,<cs>|claimed-request,<cs>|user-cancelled-request,<cs>|claimed-cancel

Leave the subscription criteria in the broad form, or narrow it with the same four-code list. Both match the claimed group Task.

A claimed order arrives with a status of requested and a businessStatus of claimed-request. The filler can process it exactly as a directed-request, or route it to a separate pipeline. The claimed-request tag on meta.tag carries the same signal for a filler that routes on tags rather than on businessStatus.

Do Not Mix the Two Options

If the filler acts on the $claim response while claimed-request is also in the business-status list, the same order arrives on both paths. Either pick one option, or make the processing idempotent. Task.id and Task.groupIdentifier both identify the order for de-duplication.

Include Referenced Resources

In order to retrieve the entire Orders, use the following _include and _revinclude parameters.

Task:focus uses _include:iterate because the search matches group Tasks, and a group Task has no focus — focus is constrained to 0..0 on the group task profile. The ServiceRequests belong to the individual Tasks that _revinclude=Task:part-of brings in, so the include has to iterate onto them.

Example

GET [base]/Task?status=requested,cancelled & \
_tag=http://fhir.geniesolutions.io/CodeSystem/eorders-tag|fulfillment-task-group & \
business-status=http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|directed-request, \
http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|user-cancelled-request, \
http://fhir.geniesolutions.io/CodeSystem/eorders-task-business-status-codesystem|claimed-cancel & \
owner=Organization/dda4a656-f60e-11ed-baf1-d2cbed391bcf & \
_sort=_lastUpdated & _count=500 & \
_include=Task:patient & _include=Task:owner & _include=Task:requester & _revinclude=Task:part-of & \
_revinclude:iterate=CommunicationRequest:about:Task & \
_include:iterate=Task:focus & _include:iterate=ServiceRequest:copiesTo & \
_include:iterate=PractitionerRole:practitioner & _include:iterate=PractitionerRole:organization & \
_revinclude:iterate=Consent:data:ServiceRequest

Updating Tasks based on Fulfilment

Fillers have two opportunities to update fulfilment Tasks. The first is with a combination of status (where values are fixed), businessStatus, and statusReason. The second is through adding outputs from fulfilment to Task.output. These two fulfilment updates are described below.

Status and businessStatus Combinations

Task statuses are fixed and defined within the FHIR R4 Task resource, more specifically the Task Status ValueSet. The sequencing of these statuses are prescribed by the Task State Machine.

In addition to status, Task supports a businessStatus attribute which further refines status. This is a CodeableConcept which may or may not be coded. We have defined a set of useful codes which may be extended.

Task Output

We currently define two types of output:

• a DiagnosticReport reference to an imaging report or a pathology report.
• a BookingSlot reference allowing for booking/appointment information to be shared back to the placer using a profile of the FHIR slot. The Slot contains timing information and references a Schedule which references a HealthcareService that ultimately references the Location information containing name and address. Most slot information is optional. This may be especially useful for imaging appointments and should be aligned with a booked businessStatus.

Updating Task Status with PATCH

Rather than replacing a whole Task resource with PUT, fillers should update the group and individual Tasks using FHIR Patch (FHIRPath-based) via a transaction Bundle. This minimises the chance of overwriting concurrent updates from other parties.

Each entry in the transaction Bundle has request.method = PATCH and carries a Parameters resource as its payload. The Parameters resource contains one or more parameter entries named operation, each with the following parts:

Example — mark Tasks as received, remove businessStatus and statusReason

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "operation",
      "part": [
        { "name": "type",  "valueCode": "replace" },
        { "name": "path",  "valueString": "Task.status" },
        { "name": "value", "valueCode": "received" }
      ]
    },
    {
      "name": "operation",
      "part": [
        { "name": "type", "valueCode": "delete" },
        { "name": "path", "valueString": "Task.businessStatus" }
      ]
    },
    {
      "name": "operation",
      "part": [
        { "name": "type", "valueCode": "delete" },
        { "name": "path", "valueString": "Task.statusReason" }
      ]
    }
  ]
}

This Parameters resource is then included as the resource in each entry of the transaction Bundle, with request.method = PATCH and request.url set to a conditional reference such as Task?_id=[task-id]. Every patch must explicitly handle all three fields — status, businessStatus, and statusReason — either setting them to the correct value or deleting them. See the Status and businessStatus Combinations table for valid combinations.

See the FHIR transaction PATCH Bundle example 1 (set status to received, remove businessStatus and statusReason) and example 2 (set status to accepted and businessStatus to booked, remove statusReason).

Claim Order Operation

The claim operation is used to create a new fulfilment Task for an alternate filler. Implementation of the operation cancels the original fulfilment Task, if it exists, but leaves the ServiceRequest unchanged. The original filler can determine that the order is being alternatively filled but not who is the alternative filler and similarly the alternate filler cannot determine who was originally designated to fulfill the order, if one was specified.

See Diagnostic Service Claim Operation for the full specification.

Parameters

Result Codes

Error Recovery

Example — Claim a request

POST [base]/Task/$claim

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "requisition",
      "valueIdentifier": {
        "system": "http://ns.electronichealth.net.au/id/hpio-scoped/order/1.0/8003628672586276",
        "value": "GTU00000-TWRYT3"
      }
    },
    {
      "name": "organization",
      "valueReference": {
        "reference": "Organization/18751557-2550-411a-a874-9e7631505a00",
        "display": "Magentus Practice Lab"
      }
    }
  ]
}

Note that the Organization reference should reference a known filler organization within the FHIR server.

Patient Integration

View Order Operation

The view operation is focussed on providing a patient portal with access to a diagnostic request based on a barcode. If the barcode is found and it is accessible then information is returned about the request as well as any fulfilment information by service providers. If the request has had multiple fulfilment pathways (e.g. request is directed to one provider but claimed by another provider based on patient choice) then the group Task for each filler is included. See Diagnostic Service View Operation for the full specification.

Parameters

Example — View a request

POST [base]/Task/$view_request

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "requisition",
      "valueIdentifier": {
        "system": "http://ns.electronichealth.net.au/id/hpio-scoped/order/1.0/8003629850181971",
        "value": "GTU00000-V79K2K"
      }
    }
  ]
}

If the operation is successful, a result such as Diagnostic Service View Operation Result will be returned.

If an error occurs finding the request based on the barcode, the following will be returned

Example

{
  "resourceType": "Parameters",
  "parameter": [
    {
      "name": "error",
      "valueString": "Internal server error: Requisition Not Found"
    }
  ]
}
